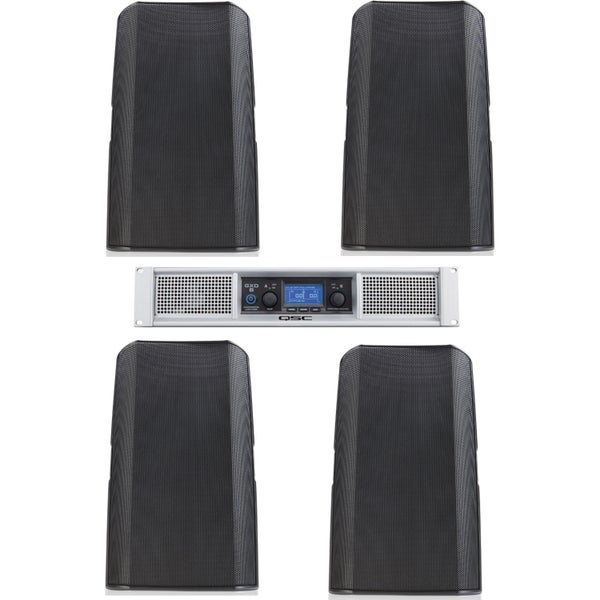

QSC 4x diffusore da installazione AD-S8T + amplificatore GX

QSC 4x diffusore da installazione AD-S8T + amplificatore GXD8
Cod. prodotto: 9000-0017-3759

Informazioni sul prodotto

Descrizione

The QSC installation set consists of 4 AD-S8T installation speakers and a GXD8 power amplifier. This sound system delivers exceptional audio coverage and performance. Mounting the speaker is relatively easy and it is able to withstand adverse weather conditions. Thanks to QSC's innovative DMT technology (Directivity Matched Transition), this speaker is able to provide consistent, balanced audio coverage. Many conventional speakers have a tweeter with a dispersion angle that doesn't match the subwoofer's, which means the sweet spot in the mid-range is mostly inaudible. QSC's AD-S8T speaker delivers a uniform frequency response over the full frequency range, resulting in an exceptional audio experience for your entire audience!

Complete, flexible, reliable

The QSC GDX8 Power Amplifier is a reliable, versatile amplifier that's suitable for professional audio applications. It delivers a capacity of no fewer than 4500 watts, making it an ideal partner for the four QSC AD-S8T installation speakers that are included in this set. The amp has a flexible DSP processor so you won't have to plug in your laptop or invest in any extra gear; you can adjust your settings directly on the amplifier itself! There is a high and low-pass filter, a 4-band equalizer, a limiter and a delay. The QSC set offers outstanding sound and value for money.

Specifiche

1x QSC GXD 8 amplificatore con processore integrato 4500 W

The GSC GXD 8 amplifier with built-in security circuitry is made for big sound systems and can deliver up to 4500 Watts.

Caratteristiche

Formato rack 19'': Sì, 2 U
Compatibile con 2 ohm: No
Number of amplifier channels: 2
Uscita per deviazione audio: No
Modalità bridge: No
Sustainable product: Not specified
Connettore in ingresso: Jack (6,35 mm) + XLR
Filtro integrato: HPF, LPF
Protezioni integrate: Da sovraccarico, termica, da cortocircuito, onde quadre / voltaggio DC, peak limiter, indicatore di clip
Processore DSP integrato: Sì
Raffreddamento: A ventola
RMS power (4 ohms) per channel: 1200 - 1299 watts
RMS power (at 8 Ohms) per channel: 800 - 899 Watts
Classe dell'amplificatore: D
Uscita amplificatore: Connettore speaker con blocco, morsetti per cavi
Dotato di crossover: No

Peso e dimensioni imballaggio incluso

Peso: 7,8 kg
Dimensioni: 60,0 x 37,0 x 15,0 cm

Specifiche

amplifier with DSP processor
power:
8 ohms, dynamic: 2x 1500 Watts
4 ohms, dynamic: 2x 2250 Watts
8 ohms, continuous: 2x 800 Watts
4 ohms, continuous: 2x 1200 Watts
distortion: <1% THD, 1 kHz at full capacity
signal-to-noise ratio: 100 dB
input sensitivity: 1.2 Vrms
voltage gain (8 Ohms): 33.5 dB
amp type: D class
frequency response: 20 Hz - 20 kHz, +0.7 / -0.8 dB
dynamic headroom: 2.73 dB
damping factor >100
input impedance: 20 kOhms balanced, 10k unbalanced
maximum input signal: +23.5 dBu
input connectors: XLR and jack on each channel
output connectors: 2x NL4 (Neutrik SpeakOn)
security: short circuit, open circuit, thermal, RF protection
DSP functions: hi-pass filter, lo-pass filter, 4-band EQ, limiter, delay
dimensions: 89 x 483 x 259 mm
weight: 6.0 kg

4x QSC AD-S8T diffusore da installazione

The QSC AD-S8T installation speaker is suitable for 70 and 100-volt systems as well as standard audio installations. It has an IP-54 rating, which means it's splash-resistant!

Caratteristiche

Diametro del woofer: 8'' (200 mm)
Diametro tweeter: 1" (25,4 mm)
Suitable for outdoors: Yes
Sensibilità: 90 dB
Peso per cassa: 11 kg
Diffusore da installazione / 100 volt: Sì
Colore: Nero
SPL massimo: 110 - 119 dB
Frequenza massima: 20 - 20,9 kHz
Frequenza minima: 50 - 59 Hz
Impedenza nominale: 8 ohm
Potenza di picco in watt: 350 - 499 watt
Potenza RMS: 200 - 349 watt
Set: No

Peso e dimensioni imballaggio incluso

Peso: 14,5 kg
Dimensioni: 73,0 x 36,0 x 36,0 cm

Specifiche

installation speaker
capacity: 200 RMS, 400W program
woofer: 8 in (2-inch voice coil)
tweeter: 1-inch compression driver
dispersion angle: 105°
frequency range: 55 Hz - 20 kHz
max. SPL: 119 dB
impedance: 8 ohms
taps:
- 100 Volt: 60, 30, 15, 7.5 W
- 70 Volt: 60, 30, 15, 7.5 W
connector: Euroblock
housing: ABS plastic
IP rating: 54
dimensions: 440 x 254 x 251 mm
weight: 14.5 kg
includes: X-mount bracket, Euroblock connector, input cover

Impegno di servizio

QSC GXD 8 amplificatore con processore integrato 4500 W Registrando questo prodotto sul sito web di QSC entro 30 giorni dalla data di acquisto potrete usufruire di una garanzia di 6 anni. Senza la registrazione la garanzia sarà di 2 anni.

Registrando questo prodotto sul sito web di QSC entro 30 giorni dalla data di acquisto potrete usufruire di una garanzia di 6 anni. Senza la registrazione la garanzia sarà di 2 anni.

QSC AD-S8T diffusore da installazione Su questo prodotto avrete una garanzia di 2 anni.

Su questo prodotto avrete una garanzia di 2 anni.

Recensioni (5)

5,0

5 Valutazioni

Valutazione

5 stelle 5 4 stelle 0 3 stelle 0 2 stelle 0 1 stella 0

Non è più possibile scrivere una recensione su questo articolo.

Recensioni da altri paesi

5 / 5

QSC GXD 8 amplificatore con processore integrato 4500 W

Wat een degelijke versterker!
Zeer licht in gewicht en dan toch zat vermogen, heel blij mee en de DSP werkt ook zeer fijn en duidelijk.
Scheelt enorm veel sjouw werk.
Dankzij de goede limiters ook heerlijk te gebruiken als floor monitorversterker.

26 febbraio 2020 | Ernst S.

Questa recensione é stata tradotta automaticamente dall'olandese.

5 / 5

QSC GXD 8 amplificatore con processore integrato 4500 W

Super produit, reçu très rapidement, site très sérieux le top je vous le conseille !

11 novembre 2019 | Joseph

Questa recensione é stata tradotta automaticamente dal francese.

5 / 5

QSC GXD 8 amplificatore con processore integrato 4500 W

for the price, usually around £650, you get 1200 watts per channel into 4 ohms. The build quality seems very good, the performance is excellent, and they'll happily drive a single E18SW (800W rms) per channel to high output levels. I have now used these for a number of events in the last couple of years and they have performed flawlessly. The built in DSP is very capable, and useful if you have more than one type of speaker in use. Being switch-mode, they're light, which is nice when you have seven of them in a flightcase. They seem to be built to a slightly better standard than the GXD4 - one of which I've had fail.

The only negative thing I can think of is that they lack air filters behind the grilles so after a summer of events they become quite dusty inside. Routine maintenance should include taking the lids off and cleaning them every so often.

17 ottobre 2019 | jonathan

Questa recensione é stata tradotta automaticamente dall'inglese.

5 / 5

QSC GXD 8 amplificatore con processore integrato 4500 W

Is dit product te gebruiken voor de Hk audio linear 5 f115 passieve top ?
en is er software voor apple om deze versterker te gebruiken, zo ja waar kan ik deze vinden ?

Bedankt.

5 settembre 2016 | dennis J.

Questa recensione é stata tradotta automaticamente dall'olandese.

5 / 5
