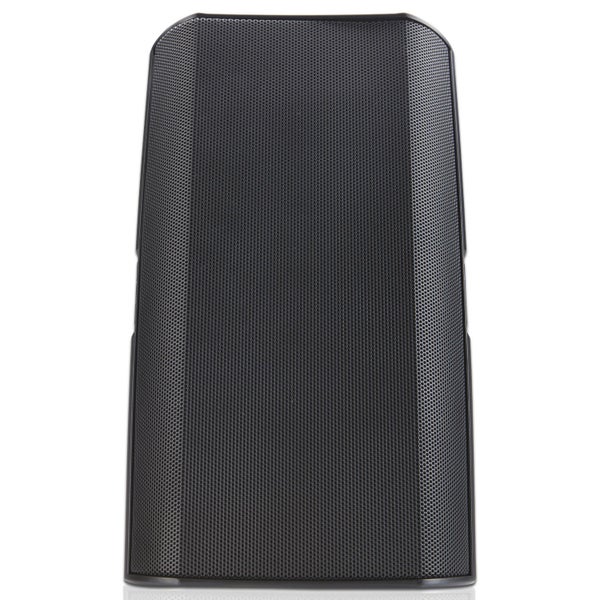

QSC AD-S8T diffusore da installazione

ancora nessuna recensione

Questo prodotto è fuori assortimento e non può essere ordinato.

Nessuna alternativa trovata
QSC AD-S8T diffusore da installazione
Cod. prodotto: 9000-0017-2988 Garanzia Bax Music: Su questo prodotto avrete una garanzia di 2 anni.

Descrizione

QSC have pulled out all the stops to develop the optimal AD-S8T installation speaker. It boasts an RMS capacity of 200 watts and produces a maximum SPL of 119 dB! The capacity is distributed by means of an 8-inch woofer and a 1-inch compression driver, giving this speaker an audio dispersion angle of 105 degrees. The classy black housing has been kept clean and subtle so as to not distract from your interior.

QSC AD-S8T: 70 and 100-volt

When using long cables in a fixed installation, you'll always have to deal with signal loss. To prevent this, you can make use of a 70 or 100-volt system. This AS-S8T is suitable for both. It's equipped with transformer taps that enable you to choose between 60, 30, 15 or 7.5 watts. You can also use it with a regular amplifier by selecting the 8-ohm mode. This speaker can also be used outdoors thanks to the IP-54 rating, which means it is both dust and splash proof.

Specifiche

Caratteristiche

Diametro del woofer 8'' (200 mm)
Diametro tweeter 1" (25,4 mm)
Suitable for outdoors yes
Sensibilità 90 dB
Peso per cassa 11 kg
Diffusore da installazione / 100 volt
Colore nero
SPL massimo 110 - 119 dB
Frequenza massima 20 - 20,9 kHz
Frequenza minima 50 - 59 Hz
Impedenza nominale 8 ohm
Potenza di picco in watt 350 - 499 watt
Potenza RMS 200 - 349 watt
Set no

Peso e dimensioni imballaggio incluso

Peso (imballaggio incluso) 14,5 kg
Dimensioni (imballaggio incluso) 73,0 x 36,0 x 36,0 cm

Specifiche

  • installation speaker
  • capacity: 200 RMS, 400W program
  • woofer: 8 in (2-inch voice coil)
  • tweeter: 1-inch compression driver
  • dispersion angle: 105°
  • frequency range: 55 Hz - 20 kHz
  • max. SPL: 119 dB
  • impedance: 8 ohms
  • taps:
    • 100 Volt: 60, 30, 15, 7.5 W
    • 70 Volt: 60, 30, 15, 7.5 W
  • connector: Euroblock
  • housing: ABS plastic
  • IP rating: 54
  • dimensions: 440 x 254 x 251 mm
  • weight: 14.5 kg
  • includes: X-mount bracket, Euroblock connector, input cover
