Audiophony PREZONE642

ancora nessuna recensione
Audiophony PREZONE642

Fuori assortimento

Questo prodotto non può essere ordinato

Specifiche

Caratteristiche

Numero di ausiliarie
0
Canali di linea
4
Numero dei canali microfono
6
Numero di submaster
2
Compressore sugli ingressi
No
Crossfader
No
Ducking
No
Sustainable product
Not specified
Equalizzatore
A 3 bande
Supporta Faderstart
No
Uscita cuffie
Sì
Connettore in ingresso
Jack (6,35 mm) + XLR + RCA
Lettore audio integrato
No
Effetti integrati
No
Indicatori di livello sugli ingressi
No
Indicatori di livello sulle uscite
VU meter LED
Altezza rack
2 U
Connettore uscita
Jack (6,35 mm) + XLR + RCA, euroblock
Controllo volume
Fader

Peso e dimensioni imballaggio incluso

Peso
6,5 kg
Dimensioni
50,0 x 40,0 x 10,0 cm

Specifiche

  • mixer
  • x2 zones
  • x6 mono microphone/line inputs via XLR/mono 6.3mm jacks
  • phantom power and talk-over on channels 1 and 2
  • x4 stereo inputs via RCA or jack
  • priority input via 6.35mm jack
  • zone 1 and 2 balanced mono XLR outputs
  • zone inserts via 6.3mm TRS jack ports
  • balanced SUB output per zone via 6.3mm jack
  • RCA stereo output
  • microphone input gain and 3-band EQ controls
  • gain control on all inputs
  • 2-band tone controls per zone
  • SUB volume control per zone
  • a screwdriver is required for access to technical settings
  • zone assignment and PFL on every channel strip
  • signal and peak LED indicators
  • output level indicator for each zone via 8-LED VU meter
  • headphone output with volume control (zones and PFL)
  • power supply: 230V, 50/60 Hz
  • power consumption: 16W
  • back-up power supply: DC 24V with Link Out
  • frequency range: 20Hz - 20kHz (+/- 3dB)
  • THD (1 kHz nominal power): <0.2%
  • equalizer:
    • treble: +/- 12dB @ 12.5kHz
    • mid: +/- 12dB @ 2,5kHz
    • bass: ± 12 dB at 80Hz
  • dimensions: 295 x 85 x 482mm
  • 19"rack mountable: height 2U
  • weight: 5 kg

Articoli alternativi

Specifiche

Caratteristiche

Numero di ausiliarie
0
Canali di linea
4
Numero dei canali microfono
6
Numero di submaster
2
Compressore sugli ingressi
No
Crossfader
No
Ducking
No
Sustainable product
Not specified
Equalizzatore
A 3 bande
Supporta Faderstart
No
Uscita cuffie
Sì
Connettore in ingresso
Jack (6,35 mm) + XLR + RCA
Lettore audio integrato
No
Effetti integrati
No
Indicatori di livello sugli ingressi
No
Indicatori di livello sulle uscite
VU meter LED
Altezza rack
2 U
Connettore uscita
Jack (6,35 mm) + XLR + RCA, euroblock
Controllo volume
Fader

Peso e dimensioni imballaggio incluso

Peso
6,5 kg
Dimensioni
50,0 x 40,0 x 10,0 cm

Specifiche

  • mixer
  • x2 zones
  • x6 mono microphone/line inputs via XLR/mono 6.3mm jacks
  • phantom power and talk-over on channels 1 and 2
  • x4 stereo inputs via RCA or jack
  • priority input via 6.35mm jack
  • zone 1 and 2 balanced mono XLR outputs
  • zone inserts via 6.3mm TRS jack ports
  • balanced SUB output per zone via 6.3mm jack
  • RCA stereo output
  • microphone input gain and 3-band EQ controls
  • gain control on all inputs
  • 2-band tone controls per zone
  • SUB volume control per zone
  • a screwdriver is required for access to technical settings
  • zone assignment and PFL on every channel strip
  • signal and peak LED indicators
  • output level indicator for each zone via 8-LED VU meter
  • headphone output with volume control (zones and PFL)
  • power supply: 230V, 50/60 Hz
  • power consumption: 16W
  • back-up power supply: DC 24V with Link Out
  • frequency range: 20Hz - 20kHz (+/- 3dB)
  • THD (1 kHz nominal power): <0.2%
  • equalizer:
    • treble: +/- 12dB @ 12.5kHz
    • mid: +/- 12dB @ 2,5kHz
    • bass: ± 12 dB at 80Hz
  • dimensions: 295 x 85 x 482mm
  • 19"rack mountable: height 2U
  • weight: 5 kg
bax-shop.uk | B-stock

Informazioni sul prodotto

Cod. prodotto: 9000-0065-3267

Descrizione

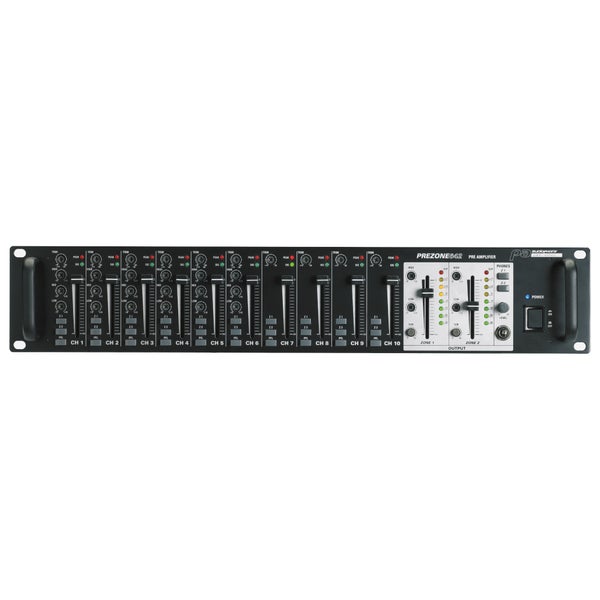

Via ten channels and two zones, the Audiophony PREZONE642 mixer supplies plenty of setup options. This rack unit comes loaded with six microphone inputs and four line inputs that can routed to a specific zone or both zones at once. Each zone also features extra SUB output with dedicated volume controls and an extra insert that can either support external effect units or added protection. An equalizer and output level display has been fitted to help dial in each zone and, via the headphone port on the front panel and the Phone button, the signal can be monitored per zone before being sent out.

Clean Design

The clean design and layout of the Audiophony PREZONE642 mixer keeps things smooth and easy to work with and, since it's so compact, the whole thing can be neatly mounted in a 19 inch rack where it takes up just two units of space. Once connected up, a priority switch can be flipped between channels 1 and 2, ducking the volume of non-priority channels to support announcements, while a set of Peak indicators aid signal level monitoring and a set of Clip LEDs light up for each channel when the signal gets too high. In case of a power outage, this mixer even comes equipped with a 24 Volt backup power supply.
