Descrizione
The passive Elements installation set by HK Audio consists of a single E435 speaker with compatible wall bracket set. It's lightweight mid/high speaker components are equipped with the E-Connect system. Because this set is best suited to a fixed installation, it is ideal for a pub or theatre. The Elements E435I single installation set is versatile, and is suitable for the amplification of both music and speech.
Elements E435I: features of the speaker
The E435 mid/high component has four 3.5-inch full-range drivers that deliver a continuous output capacity of 150 watts RMS and a nominal impedance of 16 ohms. The frequency range is 140 to 20,000 Hz (-10 dB) and travels through an integrated system filter that can handle the high, mid and low tones. Furthermore, the speaker has a crossover frequency of 140 Hz with 12dB filtering and a 70-degree horizontal dispersion angle so your audience gets the best possible audio.
Mounting and E-Connect
Mounting is easy with the included wall brackets. Both the bottom and top brackets fold open so you can slide the speakers in. Then, use a single cable to connect the top (‘out’) and the bottom (‘in’) via E-Connect technology. The audio signal is sent via the lower speaker through to the top speaker for optimal use of space!
Consigli e osservazioni

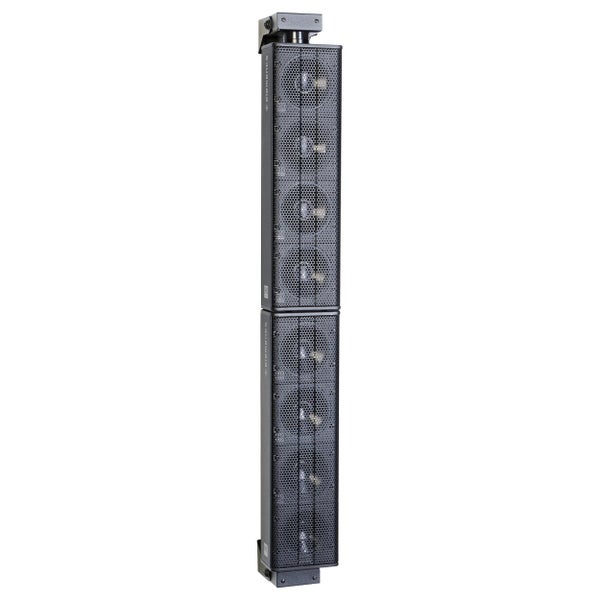

- Attenzione: l'immagine mostra il set da installazione passivo con due casse E435. Questo set viene consegnato con un solo elemento E435, completo di quattro driver e del set di ganci per l'applicazione a muro.
