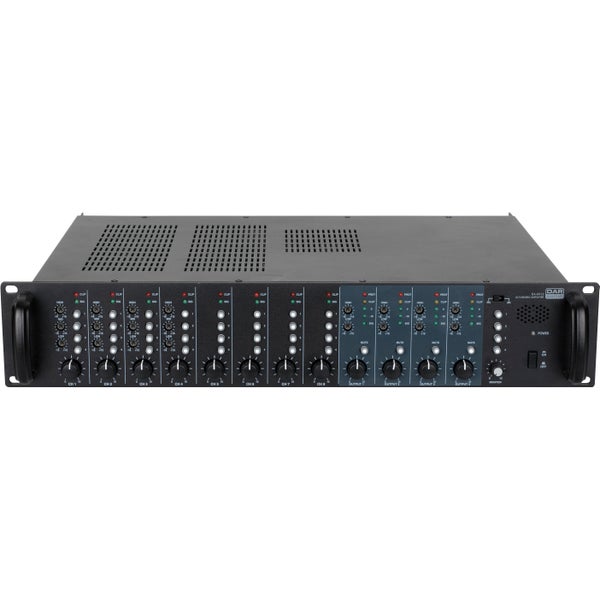

DAP MA-8120 120 Watt Digital Zone Amplifier

ancora nessuna recensione
DAP MA-8120 120 Watt Digital Zone Amplifier

Fuori assortimento

Questo prodotto non può essere ordinato

Specifiche

Caratteristiche

Canali di linea
4
Numero dei canali microfono
4
Zone
4x mono
Crossfader
No
Ducking
No
Equalizzatore
A 3 bande
Supporta Faderstart
No
Controllo del gain sugli ingressi
Sì
Uscita cuffie
No
Connettore in ingresso
Jack (6,35 mm) + XLR + RCA
Interfaccia audio integrata
No
Effetti integrati
No
Indicatori di livello sugli ingressi
No
Indicatori di livello sulle uscite
No
Controllabile a distanza
No
Panning per canale
No
Altezza rack
2 U
Divisione in zone
No
Tipo di display
Nessuno
Connettore uscita
Euroblock
Controllo volume
Manopola

Peso e dimensioni imballaggio incluso

Peso
7,5 kg
Dimensioni
53,5 x 41,0 x 18,0 cm

Specifiche

  • 70 Volt / 100 Volt matrix amplifier or zone amplifier
  • rack module 19-inch 2U
  • 4 zones
  • capacity per zone: 120 Watt
  • 4 microphone / line inputs: XLR and TRS jack
  • 4 line inouts: 2 x RCA female and 2 x TS jack
  • 4 wand control inputs: RJ45 female (for MA-8120WP)
  • 1 announcement microphone input: RJ45 female (for MA-8120PM)
  • 4 line outputs: terminal sockets
  • 4 70V/100V outputs: terminal sockets
  • 2-band tone control per output: (low (100 Hz) and high (10 kHz))
  • mute button per output
  • 4-band tone controls per line inputs: (low (80 Hz), mid (2,5 kHz) and high (12 kHz))
  • talk-over function on channel 1
  • 48 Volt phantom power for microphone inputs
  • frequency range: 20Hz - 20kHz
  • T.H.D. (total harmonic distortion): < 0,1%
  • power consumption: 500 W
  • material: metal
  • colour: black
  • fitted with two handles
  • dimensions: 483 x 328 x 88 mm (L x W x H)
  • weight: 9 kg
  • schuko power cable included, 1.5m

Nessuna alternativa trovata

Specifiche

Caratteristiche

Canali di linea
4
Numero dei canali microfono
4
Zone
4x mono
Crossfader
No
Ducking
No
Equalizzatore
A 3 bande
Supporta Faderstart
No
Controllo del gain sugli ingressi
Sì
Uscita cuffie
No
Connettore in ingresso
Jack (6,35 mm) + XLR + RCA
Interfaccia audio integrata
No
Effetti integrati
No
Indicatori di livello sugli ingressi
No
Indicatori di livello sulle uscite
No
Controllabile a distanza
No
Panning per canale
No
Altezza rack
2 U
Divisione in zone
No
Tipo di display
Nessuno
Connettore uscita
Euroblock
Controllo volume
Manopola

Peso e dimensioni imballaggio incluso

Peso
7,5 kg
Dimensioni
53,5 x 41,0 x 18,0 cm

Specifiche

  • 70 Volt / 100 Volt matrix amplifier or zone amplifier
  • rack module 19-inch 2U
  • 4 zones
  • capacity per zone: 120 Watt
  • 4 microphone / line inputs: XLR and TRS jack
  • 4 line inouts: 2 x RCA female and 2 x TS jack
  • 4 wand control inputs: RJ45 female (for MA-8120WP)
  • 1 announcement microphone input: RJ45 female (for MA-8120PM)
  • 4 line outputs: terminal sockets
  • 4 70V/100V outputs: terminal sockets
  • 2-band tone control per output: (low (100 Hz) and high (10 kHz))
  • mute button per output
  • 4-band tone controls per line inputs: (low (80 Hz), mid (2,5 kHz) and high (12 kHz))
  • talk-over function on channel 1
  • 48 Volt phantom power for microphone inputs
  • frequency range: 20Hz - 20kHz
  • T.H.D. (total harmonic distortion): < 0,1%
  • power consumption: 500 W
  • material: metal
  • colour: black
  • fitted with two handles
  • dimensions: 483 x 328 x 88 mm (L x W x H)
  • weight: 9 kg
  • schuko power cable included, 1.5m
bax-shop.uk | B-stock

Informazioni sul prodotto

Cod. prodotto: 9000-0056-0046

Descrizione

The enormously useful DAP MA-8120 amplifier is able to manage multi-room audio playback from a single point. This slimmed down matrix amp comes with eight inputs and four outputs. Four line inputs and four microphone inputs each have switchable phantom power so that the signal of up to eight audio sources can be sent to up to four rooms. The volume of each output can be individually adjusted while each output can handle a 100 Volt or 70 Volt speaker and has dedicated two-band tone controls and a damping function.


Hallmarks and Functions of the MA-8120

Besides three-band tone controls, the first channel of the DAP MA-8120 also has a convenient 'talk over' switch placed on the back. Flip this switch and every other channel is dampened, giving priority to the first channel. The gain adjustment knobs per channel are also safely placed at the back next to the inputs for the control panel and announcement microphone. At the front, a small speaker is integrated and acts as a mini-monitor and the whole 2U-high box is easily mounted in a 19-inch rack.

Garanzia Bax Music Su questo prodotto avrete una garanzia di 2 anni.
