Focusrite ISA stereo AD scheda convertitore per ISA One e ISA 430

ancora nessuna recensione

Questo prodotto è fuori assortimento e non può essere ordinato.

Nessuna alternativa trovata

Focusrite ISA stereo AD scheda convertitore per ISA One e ISA 430
Cod. prodotto: TS-IRDBISAONE430 Garanzia Bax Music: Su questo prodotto avrete una garanzia di 2 anni.

Descrizione

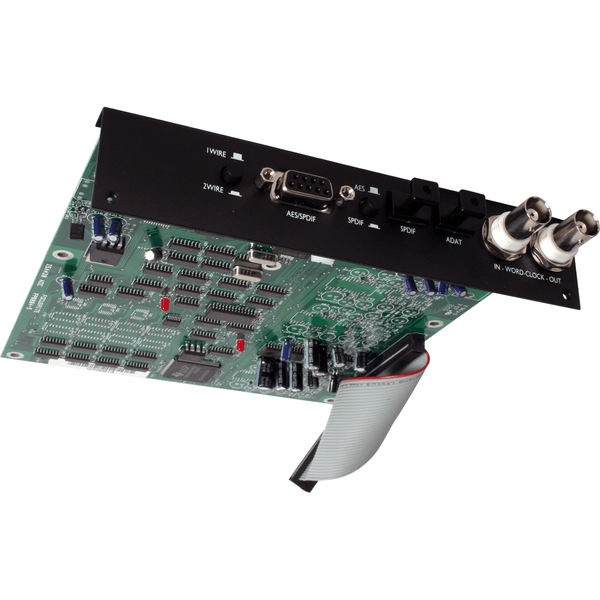

The Focusrite Pro Stereo A/D converter is an expansion for two other Focusrite products. It works with the analogue ISA One and the ISA 430 mkII models, so you can convert analogue to digital! The ISA stereo A/D card is equipped with cutting-edge conversion technology, and offers the user two channels that offer the highest quality 24-bit conversion for all sample rates, up to 192 kHz.

You'll find a number of digital outputs on this card, including 2 single channels, dual wire AES, EBU or two-channel S/PDIF. Everything works via a 9-pin D-type connector, and the card also recognises connections via ADAT. The ADAT (TOSlink) port is stereo, and works at 24 bits, up to 96 kHz.

This truly is an indispensable product if you use the ISA One or ISA 430, and want to work digitally in your studio!

Specifiche

Caratteristiche

Formato rack 19''	no
Canali analogici in ingresso	0
Canali analogici in uscita	0
Collegamento con computer	non applicabile
Uscita cuffie	no
Frequenza di campionamento massima	192 kHz
Ingressi digitali	nessuno

Peso e dimensioni imballaggio incluso

Peso (imballaggio incluso)	500 gr
Dimensioni (imballaggio incluso)	29,5 x 22,0 x 5,5 cm

Specifiche

output all channels: AES/EBU (5V / 110 ohms), S/PDIF (0.8 V / 75 ohms)
output all channels: 2x ADAT optical interface (SMUX I/II/IV)
output all channels: 2x S/PDIF optical interface
bit depth: 24 bits at max. 192 kHz
AES3 output distortion/noise: -117.5dB A-weighted, audio band-limited, 1kHz, -60dB FS input
