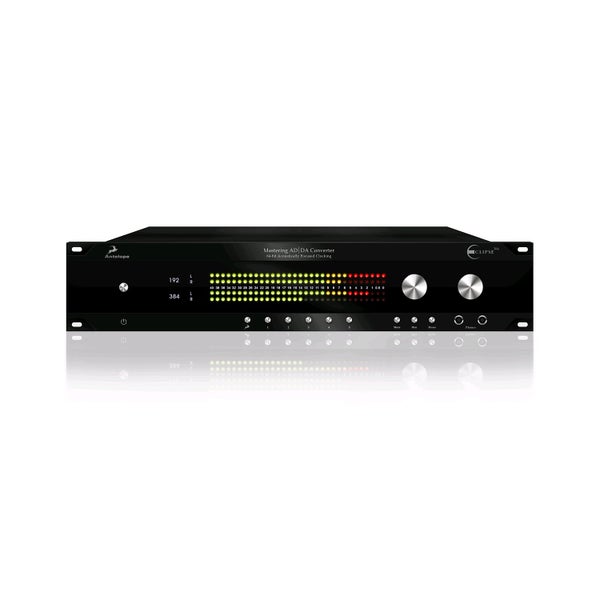

Antelope Audio Eclipse 384 convertitore AD/DA per masterizzazione
Cod. prodotto: 9000-0010-6698 Garanzia Bax Music: Su questo prodotto avrete una garanzia di 2 anni.

Descrizione

The Eclipse 384 from Antelope Audio is an advanced Mastering AD/DA converter. It converts audio at a maximum sample rate of no less than 384 kHz and is equipped with a number of handy connectors. Thanks to the connectors and the included controller software, the Eclipse 384 AD/DA converter can also be used as a USB interface, a digital router, a monitor controller and a headphone amplifier with talkback function. This compact and versatile converter has a classy matte black housing.

Eclipse 384: connection possibilities

Most of the connectors on the Antelope Eclipse 384 are found on the rear. Besides analogue and digital connectors, there are also three outputs for your studio monitors and a subwoofer output. You can also connect it to your PC or Mac and use it as a sound card, controlling all of the functions through the clear operating panel provided by the included software. Settings can also be viewed directly on the Eclipse 384's OLED screen.

Superior audio quality

Only the best components have been used to manufacture this converter, something that can be heard in its top-quality audio. The beating heart of the Eclipse 384 is the highly acclaimed Isochrone Trinity master clock. This 64-bit clock offers a sample rate from 32 to 384 kHz. It's even possible to set a separate sample rate for each Wordclock output. All of this means that the Eclipse 384 delivers exceptionally tight and clean sound without any unwanted jitters.

Specifiche

Caratteristiche

Formato rack 19'' sì, 2 U
Canali analogici in ingresso 6
Canali analogici in uscita 9 - 16
Collegamento con computer USB
Uscita cuffie
Frequenza di campionamento massima 384 kHz

Peso e dimensioni imballaggio incluso

Peso (imballaggio incluso) 11,0 kg
Dimensioni (imballaggio incluso) 63,5 x 40,1 x 14,2 cm

Specifiche

  • AD/DA converter
  • professional use
  • connectors: see below
  • USB 2.0 connector (data stream up to 480Mbits/384kHz)
  • clock system: 4th Generation Acoustically Focused Clocking
  • WordClock input: 1x BNC @ 75 ohms (44.1 - 384 kHz)
  • WordClock outputs: 4x BNC @ 75 ohms (44.1 - 384 kHz), block wave signal
  • dynamic range D/A conversion: 129 dB
  • dynamic range A/D conversion: 123 dB
  • total harmonic distortion: <0.0004%
  • operating temperature: 0 - 50 ºC
  • power supply: 95 - 245 V AC
  • power consumption: 20 W
  • dimensions: 483 x 282 x 88 mm
  • weight: 8 kg

inputs:

  • analogue inputs: 3x stereo XLR/jack combo (balanced)
  • connectors: 2x TRS jack
  • talkback microphone connector: 1x TRS jack (balanced)
  • foot switch input: 1x TRS jack
  • AES/EBU input: 3x XLR
  • frequency range: 32 - 192 kHz @ 110 Ohm
  • S/PDIF coaxial: 2x RCA
  • frequency range: 32 - 192 kHz @ 75 Ohm
  • S/PDIF optical: 2x TOSLINK
  • frequency range: maximum 96 kHz

outputs:

  • analogue master output: stereo XLR (balanced)
  • monitor output: 3x stereo (1x XLR, 2x TRS - balanced)
  • subwoofer output (LFE): XLR (balanced)
  • front headphone output: 2x TRS jack
  • rear headphone output: 2x TRS jack (cue mix)
  • AES/EBU input: 2x XLR
  • frequency range: 32 - 192 kHz @ 110 Ohm (384 kHz in Dual Wire mode)
  • de-jittered AES/EBU input: 2x XLR
  • frequency range: 32 - 192 kHz @ 110 Ohm (384 kHz in Dual Wire mode)
  • de-jittered S/PDIF coaxial: RCA
  • frequency range: 32 - 192 kHz @ 75 Ohm
  • de-jittered S/PDIF optical: TOSLINK
  • frequency range: maximum 96 kHz
